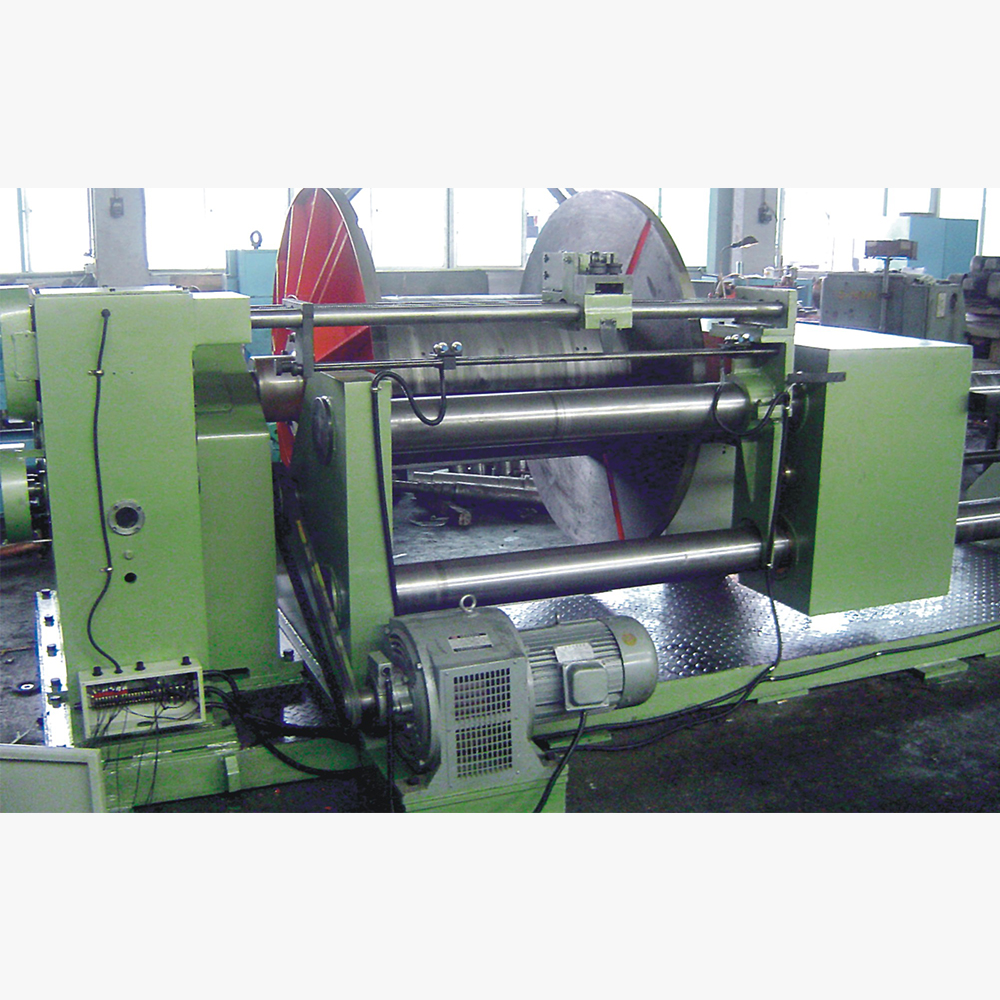

FLP-1400铝杆复绕机

本设备专供铝(铜)杆轧机成圈收线下来的圈线,经本设备重新复绕,使其成为有规则,整齐排列的打捆圈线入库
  • 产品货号:

    FLP-1400
  • 原产地:

    中国
  • 颜色:

    按要求
  • 最小起订量:

    1台
  • Warranty:

    12月
  • 产品详情

1.    设备用途:

 本设备专供铝杆轧机成圈收线下来的圈线,经本设备重新复绕,使其成为有规则,整齐排列的打捆圈线入库。

2.    设备主要技术参数:

序号



单位



1

单线直径

mm

9.5

2

盘具最高转速

r/min

59.4

3

盘具(空盘)最高线速度

m/s

23.5

4

排距的范围

mm

10.613.5

5

盘具的规格

mm

φ1460×φ650×1000

6

成圈线捆的规格

mm

φ1400×φ650×1000

7

成圈线捆的重量

kg

1800

8

成圈线的总长度

m

9500

9

主电动机

kw/rpm

7.5/1500交流变频

10

线盘移动电机

kw/rpm

1.5/940

11

设备的总重量

kg

5700

12

设备的外形尺寸

mm

9000×4310×4540

Aluminum Rod Rewinding Machine

Description of the structure:
(1)4000mm - pay off stand:

The 4000mm pay-off stand is composed of welding stand, wire protection tube, bobbin winder. The brackets are welded by the steel; the rods are leaded out through the center line of wire protection tube, preventing the rods disorder; the roller bearings settled in both sides of over-cable drum rotate flexibly to prevent rods' scratching.


(2)Entry sheave:
Entry sheave is made up by welding stand and guide roller. The guide roller guides the rod into straightening device to make the progress more stable of rod.


(3) Alignment device:
The alignment is consisted of 4-group mechanism. The first group is "Well" shaped to straightening roller. The space of the roller is large mainly carries on the pre alignment and guiding on the initial stage when the deformation rod is larger. The second group is complex "well" shaped to straightening roller, but the space is smaller and then pre alignment of rod again. Third group is vertical straightening wheel, the straightening wheel are arranged staggered. There is no space for Aluminum rod and straightening wheel. According to the characteristic of rod material deformation, it will adjust the position of straightening wheel, making the rod bear the pressure between the wheels to achieve the goal of vertical precise straightening. Giving appropriate rod tension by adjusting the elasticity of tension blocks friction. Fourth group is horizontal straightening wheel. The structure is the same with vertical straightening wheel to make the rod can precise alignment in horizontal direction.


(4)Take-up device:
The take-up device is consisted of bracket, transmission system, winding displacement and basket coiler. The transmission drives are vertical transmission by an AC motor system-18.5KW to make the basket coiler revolving through gear reducer and the basket coiler rotates through the reducer.
Basket coiler is vertical. Upper edge can be dismantled to make the coiled rod unloaded. Inner core is composed of 3 arc plates, through the connecting rod mechanism to shrink and expansion, it is convenient for upper and lower.
Winding displacement part consists of a main drive shaft get in through a set of chain wheel transmission, and through the worm gear reducer, stepless gearbox drive to make the winding displacement rod moves up and down. winding displacement rod is two-way screw rod to realize direction change automatically. Swing Arm Type guiding wheel makes the rod and take-up device closer. It is good for the steady of the progress.


(5)Electrical control system:
The electrical system consists of a three-phase four wire 380V, 50Hz, low-voltage network power supply, the total power of the device is about 18.5kw.
The main motor of 18.5Kw adopts Huichuan all digital AC frequency conversion control.


公司自成立以来,受到税务、工商、财政等有关部门的好评,2003年被授予英国DAS颁发的质量管理体系证书和英国Ukas批准的质量管理体系证书。2005年,我公司被国际电线电缆协会评为突出会员之一。



Application and composition:

1.Aluminum Rod Rewinder is used to rewind aluminum rod or copper rod from casting & rolling line and make it regular so as to bundle it up in good order.
2. The equipment is consists of 4000mm-pay off stand, alignment, take-up device and electric control system.


常见问题解答:

问题1:如果我想获得报价,我应该告诉你什么信息。

答:货物名称,尺寸,数量。

问题2:如何付款?

答:T/T

问题3:交货期

答:3个月









留言
如感兴趣,请留下具体需求信息和您的完整联系方式,我们会第一时间回复!
相关产品
我们的主要产品有30多种,这其中就包括铜杆拉丝机,铝杆拉丝机,铝合金杆拉丝机,一系列的挤铅机,铜杆连铸连轧和铝杆连铸连轧等。
自动成圈机

JSM-1000 紧密收线机

JMS-1000紧密收线机属于紧密包装型高速收线设备,适用于经连续退火后铜材软线成品、软硬铝线、镀层 成品线材。独立的收线系统,使该机能与任何品牌的大拉机、连续退火生产线配套适用。
拉丝要

21M-8/2500A-8/630八头小拉机

本拉丝机适用于拉制低氧或无氧铜线,最大进线规格为8x2.05mm,出线直径范围为8x0.15~0.68mm。 本机由多头小拉机、退火机、张力摇杆一体化收线机、电控系统组成。总装机容量为400kva,总重量约为11,000kg。
单传动拉线机

S-LFD-450/11型高速单传动铝拉线机​

S-LFD-450/11型高速单传动铝拉线机 设备用途 本生产线主要用于电线电缆工业拉制裸铜、铝圆单线并且适用于异形线拉制。 设备结构特点 拉丝主机采用分体传动结构。拉丝鼓轮由直流电动机带动减速器驱动,采用电脑设定控制; 拉制异形线备有轧制导轮,便于变形;采用非滑动式,使导体表面光洁度高,损耗小。 主要技术参数 拉制材料:铜或铝 最大进线直径(mm):铜:∮8 铝:∮9.5 出线直径(mm):铜:∮1.2~∮4.0 铝:∮1.8~∮5.01
铝拉丝机

LFD-560/11型单传动铝、铝合金大拉机

LFD-560/11型单传动铝、铝合金大拉机 普铝最大进杆直径: Φ12mm          合金铝进杆直径:Φ9.5mm 普铝出线直径:Φ2.2mm-Φ5.0mm 合金铝出线直径 :Φ2.6mm-Φ4.5mm  异型线出线等效截面积:Φ2.6mm-Φ6.0mm (最高拉丝 线速度 12m/s) 最高机械速度:25m/s (普铝 2.2mm) 拉线鼓轮直径:Φ560mm×2 (预拉)+Φ450mm×8 分线导轮数量 :9 个1
铜中拉机

LHD-250/24D铜线中小拉退火机

设备用途: 本机组应适用于将F0.8mm~F1.2mm的低氧或无氧铜线拉制成F0.1~F0.4mm的铜丝,并在拉丝后直接连续进行退火软化。设备稳定性好、开机运行故障率低、生产工艺简易、操作简便。
LHD-450/13型双头铜拉线

LHD-450/13型双头铜拉线

机器的用途: 本机器专供电线电缆厂家拉制进线直径为φ9.5mm出线直径为φ4.8~2.3mm的普铝线材之用。 2. 技术规范: 序号 名 称 单位 数 据 1 进线直径 mm 2 xφ8.0 2 出线直径 mm 电工用铜 2 x φ1.20~3.50 3 出线速度(最高) m/s 25 4 最多拉伸道次 次 13 5 定速轮直径 mm φ450 6 鼓轮速比 1.461~1.15 7 最大模套尺寸 mm φ53×35 8 主电机 N=450kw;  n=1000r/min 9 定速电机 N=110kw;  n=1000r/min1
